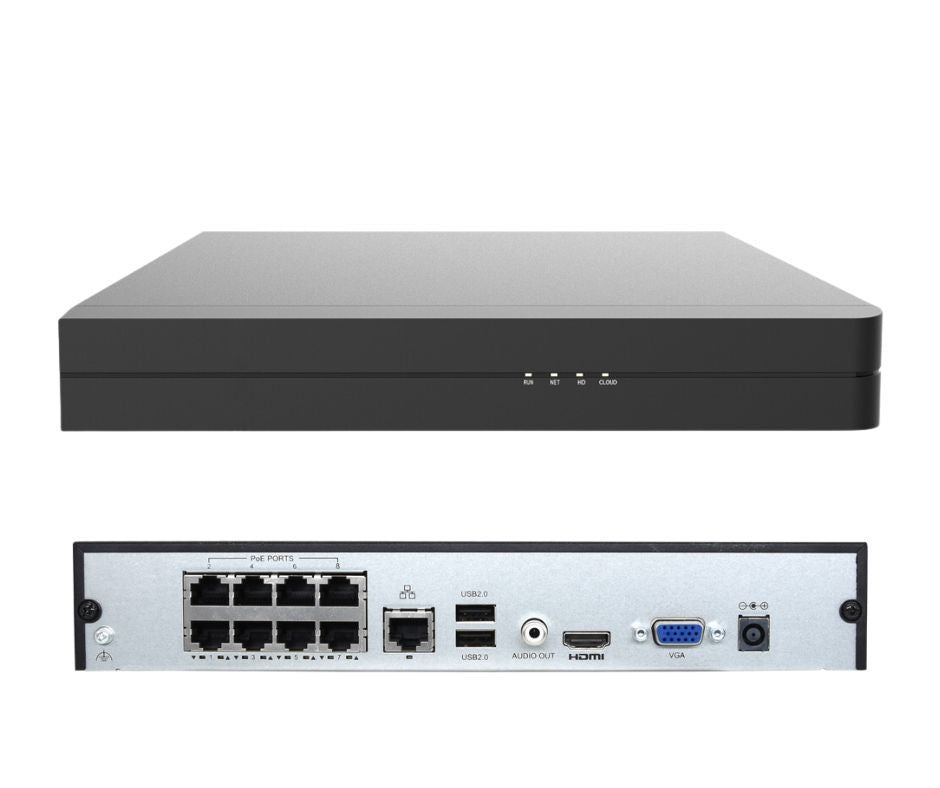

8CH NVR POE

Introducing our cutting-edge 8 Channel POE NVR, designed to elevate your surveillance experience to unprecedented levels of efficiency and clarity. Packed with advanced features, this NVR is engineered to meet the demands of modern security systems, providing unparalleled performance and convenience.

Key Features:

1. **Ultra 265/H.265/H.264 Video Formats Support**: Experience superior video compression technology, ensuring optimal storage utilization without compromising on quality.

2. **8 Channel Input**: With support for up to 8 channels, this NVR enables comprehensive surveillance coverage for your property or business premises.

3. **Plug & Play with 8 Independent POE Network Interfaces**: Enjoy hassle-free setup with plug-and-play functionality, coupled with 8 independent POE interfaces for seamless connectivity with your IP cameras.

4. **Compatibility with ONVIF and RTSP Protocols**: Seamlessly integrate mainstream cameras compliant with ONVIF standards (Profile S, Profile G, Profile T) and RTSP protocols, ensuring flexibility and compatibility with a wide range of camera brands.

5. **High-Resolution Output**: Benefit from stunning visuals with support for 1-ch HDMI and 1-ch VGA output, capable of delivering resolutions of up to 4K (3840x2160), providing crystal-clear monitoring and playback.

6. **Simultaneous HDMI and VGA Output**: Enjoy the convenience of simultaneous HDMI and VGA output, allowing for flexible display options to suit your monitoring needs.

7. **Up to 4K Resolution Recording**: Capture every detail with pristine clarity, thanks to support for up to 4K resolution recording, ensuring that no crucial information goes unnoticed.

8. **1 SATA HDD up to 6TB**: Store your footage securely with the capacity to accommodate a SATA HDD of up to 6TB, providing ample storage space for your surveillance recordings.

9. **Cloud Upgrade Support**: Stay up-to-date with the latest features and enhancements effortlessly through cloud upgrades, ensuring that your NVR remains at the forefront of innovation.

Experience unmatched reliability, versatility, and performance with our 8 Channel POE NVR. Whether it's for home security, business surveillance, or institutional monitoring, this NVR is your ultimate solution for comprehensive and efficient video surveillance.

• Support Ultra 265/H.265/H.264 video formats 8 channel input
• Plug & Play with 8 independent POE network interfaces
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
• HDMI and VGA simultaneous output
• Up to 4K resolution recording
• 1 SATA HDD up to 6TB
• Support cloud upgrade

Model - BC-NVR3116LS3-P8
Video/Audio Input -
IP Video Input - 8-ch
Network -
Incoming Bandwidth - 64Mbps
Outgoing Bandwidth - 48Mbps
Remote Users - 128
Protocols - TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP
Video/Audio Output -
HDMI/VGA Output - HDMI:
-
- 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
-
- VGA:
-
- 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution - 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output - 1-ch, RCA
Audio Compression - G.711A, G.711U
Synchronous Playback - 8-ch
Live view display - 1/4/6/8/9
Corridor Mode Screen - 3/4/5/7/9
Snapshot -
FTP/Schedule/Event Snapshot - 1-ch snapshot, up to D1 resolution
Decoding -
Decoding format - Ultra 265/H.265/H.264
Live view/Playback - 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability - 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30
Hard Disk -
SATA - 1 SATA interface
Capacity - up to 6TB for each disk
Smart -
VCA Detection by Camera - Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection
VCA Search - Behavior Search
Smart Intrusion Prevention (SIP) by Camera - 4-ch(supports channel 1-4; Alarm only, no image)
General Alarm -
General Alarm - Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm - IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface -
Network Interface - 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface - Rear panel: 2 x USB2.0
RS232 - NA
RS485 - NA
Alarm In - NA
Alarm Out - NA
PoE -
Interface - 8 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power - Max 30W for single port
-
- Max 75W in total
Supported Standard - IEEE 802.3at, IEEE 802.3af
General -
Power Supply - 52V DC
-
- Power Consumption: ≤9 W (without HDD)
Working Environment - -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) - 270mm × 205mm × 46mm (10.6"×8.1"×1.8")
Weight (without HDD) - ≤0.8 kg (1.76 lb)
Certification -
Certification - CE, FCC, UL, ROHS, WEEE
CE - EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC - Part15 Subpart B, ANSI C63.4

1x NVR

1x Power cord
